What Is Galvanized Flexible Metal Conduit?
Galvanized Flexible Metal Conduit

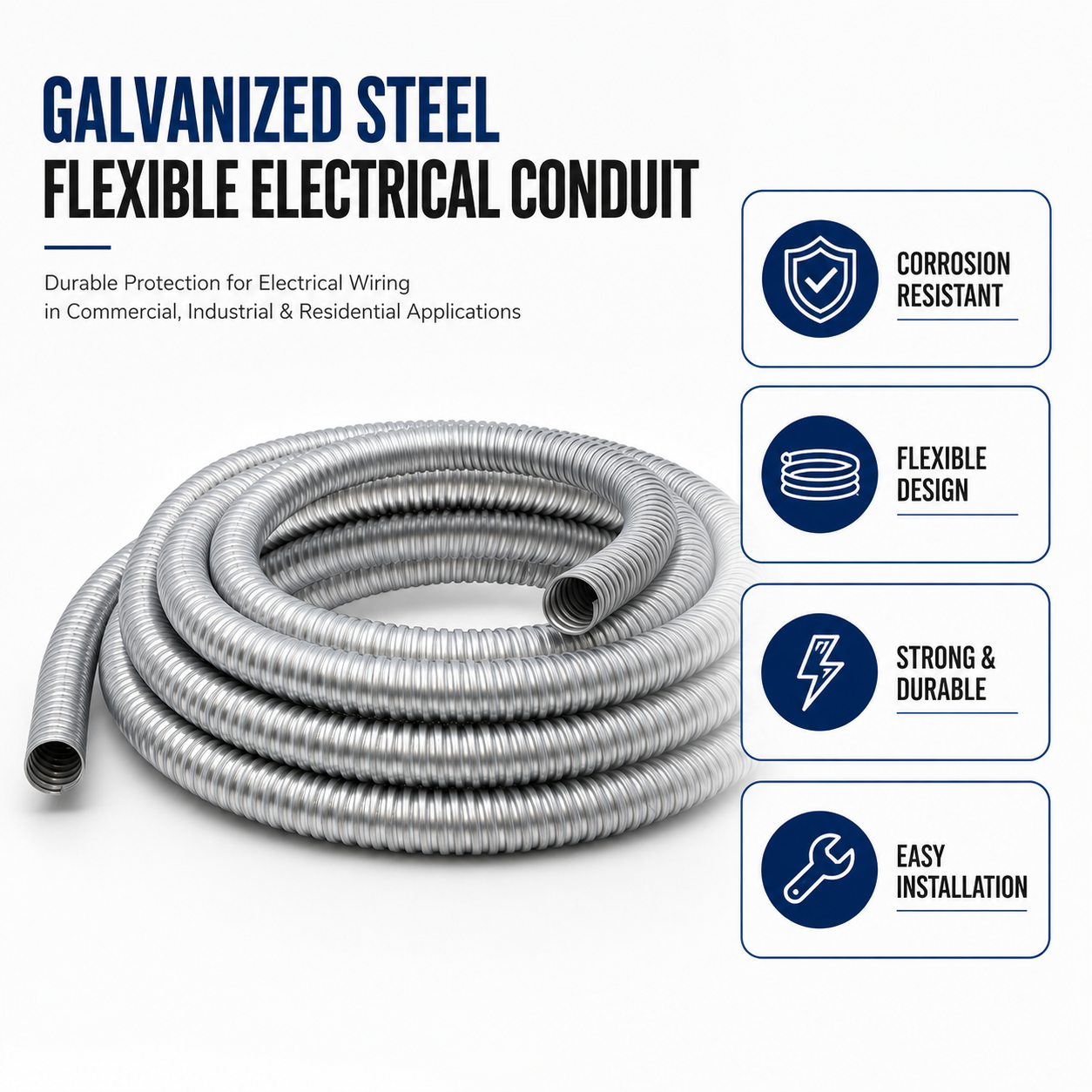

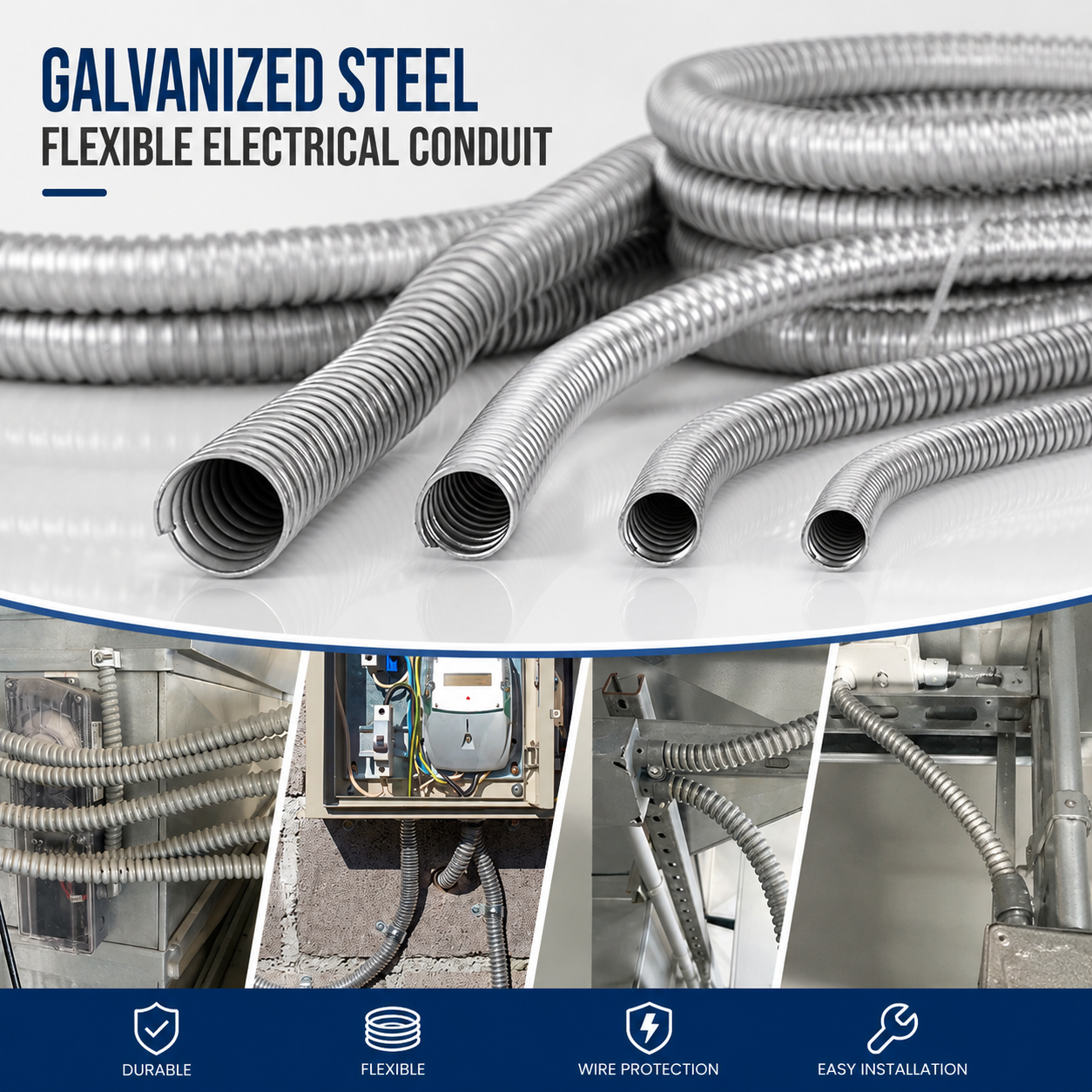

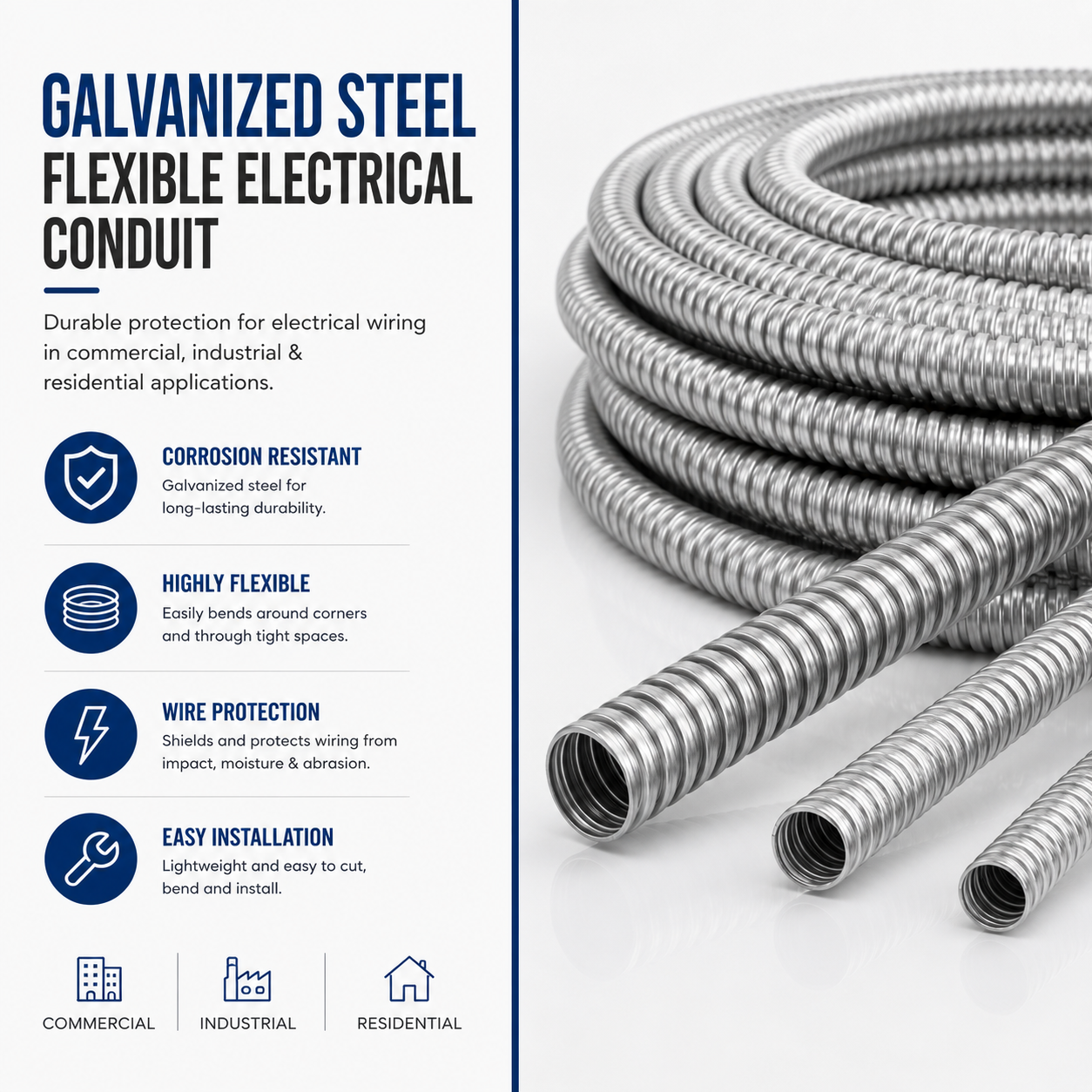

Galvanized Flexible Metal Conduit (GFMC) — also widely referred to as flexible metallic conduit (FMC), flex conduit, armor flex conduit, or simply galvanized flexible conduit — is a spiral-wound steel raceway used to protect and route electrical conductors in residential, commercial, and industrial installations. Its interlocking galvanized steel strips allow the conduit to bend around obstacles and absorb mechanical vibration without compromising conductor protection.
MESCO manufactures GFMC to UL 1 and ANSI C80.3 standards, in trade sizes from 1/2" through 4", from hot-dip galvanized low-carbon steel strip with a minimum zinc coating weight of 275 g/m² (G90 / Z275). The result is a product that does what flex conduit is supposed to do — flex reliably, resist corrosion, and last.
Why Zinc Coating Quality Defines Flexible Conduit Lifespan
When evaluating galvanized flexible conduit, the single most consequential variable is the quality and thickness of the zinc layer on the steel strip. Zinc is a sacrificial metal: it oxidizes preferentially to protect the steel beneath. Two failure modes are common with low-quality GFMC:
•Zinc loss (de-zincification) during flexing — if the zinc layer does not bond adequately to the base steel, repeated bending causes the coating to flake off, exposing bare steel that rusts rapidly.
•Insufficient zinc mass — strip produced to sub-standard coating weights (e.g., Z180 or less) provides a thinner corrosion barrier and fails earlier in damp or mildly corrosive environments.
Both failure modes are invisible at purchase but become costly in service: premature rust, failed inspections, and conduit replacement. MESCO eliminates these risks by sourcing only G90 / Z275-grade strip and verifying every coil lot with third-party zinc mass testing before production.
The MESCO Advantage: Why Contractors Choose Our Flexible Conduit
✦ Consistent Zinc Adhesion
MESCO's galvanizing process uses controlled bath chemistry and optimized line speed, ensuring the zinc layer bonds firmly to the steel strip — no flaking or peeling under repeated flexing or mechanical vibration.
✦ Sufficient Zinc Coating Thickness
Our raw material strip consistently meets ≥ 275 g/m² (G90 / Z275) zinc mass — verified by independent third-party testing. Thicker zinc = longer service life and superior corrosion resistance in demanding environments.
✦ Stable, Predictable Performance
Tight dimensional tolerances across every coil mean consistent pull-through force, reliable strip-and-connector fit, and no surprises on the job site — batch after batch.
✦ Full Traceability & QC Documentation
Mill test reports (MTRs), zinc coating weight certificates, and salt-spray test data are available on request, supporting your project compliance requirements.
Key Features at a Glance
✔ Zinc does not flake or peel under repeated flexing — maintained bond integrity throughout service life
✔ Zinc coating weight ≥ 275 g/m² (G90 / Z275) on all strip lots — verified by third-party MTR
✔ Available in trade sizes 1/2" – 4" with matching ANSI/NEMA FB 1 connectors
✔ UL 1 and ANSI C80.3 compliant — accepted by AHJs in the US, Canada, and export markets
✔ Consistent spiral pitch and strip width for reliable connector engagement
✔ RoHS-compliant materials — no lead or cadmium in the zinc bath
✔ Full QC documentation: zinc weight certs, salt-spray reports, dimensional inspection records
Technical Specifications
| Parameter | Specification |
| Product Name | Galvanized Flexible Metal Conduit (GFMC) |
| Trade Sizes | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| Standard Length | 25 ft / 50 ft / 100 ft coils; custom lengths available |
Material | Hot-dip galvanized low-carbon steel strip |
Zinc Coating Weight | ≥ 275 g/m² (Z275 / G90 standard) |
Temperature Range | -20°C to +60°C (–4°F to +140°F) |
Bend Radius (min.) | ≥ 3× nominal conduit diameter |
Standards | UL 1, ANSI C80.3, GB/T 10294 |
Finish | Bright silver galvanized; no white rust under 500 h salt spray |
Application | Indoor/outdoor, dry/damp locations; EMI-sensitive wiring runs |
Typical Applications for Galvanized Flexible Metal Conduit
MESCO GFMC serves a broad range of electrical installation scenarios where a fixed rigid conduit is impractical or insufficient:
- HVAC and refrigeration equipment connections — flex conduit absorbs compressor vibration and accommodates service access
- Motor terminations in industrial facilities — protects conductors at the point of motor entry where vibration is highest
- Luminaire and fixture drops — quick, code-compliant final connections in commercial lighting layouts
- Panel to equipment wiring in data centers and server rooms — EMI-shielded routing in tight cable trays
- Residential appliance connections — dishwashers, ranges, and HVAC air handlers requiring short flex runs
- Seismic bracing zones — flex sections provide the movement allowance required by IBC seismic code provisions
Frequently Asked Questions — Galvanized Flexible Conduit
Q: What is the difference between flexible metal conduit (FMC) and rigid conduit?
A: Flexible metal conduit bends and moves to accommodate equipment vibration, tight routing around obstacles, or motor terminations, whereas rigid conduit provides a fixed, impact-resistant raceway. MESCO GFMC is the go-to choice where movement or layout flexibility is required.
Q: Is MESCO galvanized flexible conduit UL-listed?
A: Yes. Our GFMC is manufactured to UL 1 standards. UL listing documentation and test reports are available upon request for any trade size in our catalog.
Q: How do I verify the zinc coating quality before purchase?
A: Ask for our zinc coating weight certificate (≥ 275 g/m² per coil lot) and salt-spray test results (500 h minimum, no red rust). MESCO provides full third-party QC documentation as standard practice.
Q: What connectors are compatible with MESCO GFMC?
A: Standard squeeze-type and screw-in connectors for FMC — including die-cast zinc and malleable iron fittings in straight, 45°, and 90° configurations — fit all MESCO trade sizes per ANSI/NEMA FB 1.
Q: Can I use MESCO GFMC outdoors?
A: Standard GFMC is rated for dry and damp locations. For wet or direct outdoor exposure, we recommend LFMC (Liquid-Tight Flexible Metal Conduit) — also available from MESCO. Please contact us for product selection guidance.
