Aluminized Silicon Perforated Sheet with Custom Punching
| Share | |
|---|---|
| Categories | Aluminized Steel |
| Brand | MESCO: Trusted Steel Wholesale Manufacturer |
| Product Form | Perforated sheet made from aluminized silicon coated steel |
| Coating Type | Hot-dip aluminium-silicon (Al-Si, AS type) |
| Coating Mass | AS80 / AS120 / AS150 options, confirmed per order |
| Base Steel | Cold-rolled substrate such as DX51D / DX53D / SA1C / SA1D |
| Thickness | Production sample approx. 2.6 mm; other thicknesses quoted per order |
| Hole Shape | Round, square, slotted, hexagonal, triangular or custom |
| Hole Arrangement | Straight rows or staggered rows |
| Hole Diameter and Pitch | Produced to customer drawing, with open area matched to the application |
| Margin | Unperforated border on any side for fixing |
| Sheet Size | Cut to the blank size required for the finished part |
| Processing | Custom punching and perforation service on coated material |
| Service Temperature | Confirmed per order according to coating mass and duty cycle |
| Certification | Mill test certificate and inspection report per order |
| Origin | MESCO STEEL, China, supplying coated steel since 2007 |
MESCO STEEL · Aluminized Silicon Sheet Processing
Aluminized Silicon Perforated Sheet
Precision punching for superior performance. We supply hot-dip aluminized silicon (Al-Si) coated steel sheet and perforate it to your own hole pattern, pitch and open area — cutting, punching and final inspection handled under one supplier.
Aluminized Silicon Coated Sheet with Custom Punching
Aluminized silicon sheet is cold-rolled steel that carries a hot-dip aluminium–silicon coating instead of a zinc coating. The aluminium-rich coating behaves differently from galvanized or Galvalume material: when it is heated it forms a thin, tightly adherent aluminium oxide film, and a metallurgical interdiffusion layer develops between the coating and the steel base. That combination is why Al-Si coated steel is specified where ordinary coated steel would oxidise, scale or fail.
MESCO STEEL supplies this material as flat sheet and coil and then perforates it — we punch the holes on the coated sheet so that you receive a finished, dimensionally controlled component rather than raw material that still has to be sent to a second workshop. Hole size, hole spacing, pattern arrangement, margin and sheet size are all produced to your drawing, so the same perforated Al-Si sheet can be used as an exhaust heat shield, a muffler baffle, a ventilation grille, a filtration screen or an acoustic attenuation panel.
Layer Structure of Aluminized Silicon Perforated Sheet
| Layer | Function | Notes |
|---|---|---|
| Al-Si coating (top and bottom) | High-temperature oxidation resistance, corrosion resistance, heat reflection | Hot-dip aluminium–silicon coating of the AS type |
| Interdiffusion alloy layer | Bonds coating to steel base and resists coating spalling under thermal cycling | Forms between coating and substrate |
| Cold-rolled steel core | Strength, stiffness and formability | Grade and thickness confirmed per order |
| Punched holes | Open area for airflow, heat dissipation, sound absorption, filtration or weight reduction | Pattern, diameter and pitch produced to customer drawing |
Key Features
Heat-resistant coated surface
The Al-Si coating is designed for elevated-temperature service, where it develops a protective aluminium oxide film and an interdiffusion layer at the coating–steel interface instead of scaling away.
Corrosion resistance
The aluminium-rich surface protects the steel base against atmospheric and condensate corrosion. It performs particularly well in the combination of heat and moisture that destroys many other coated sheets.
Accurate punching

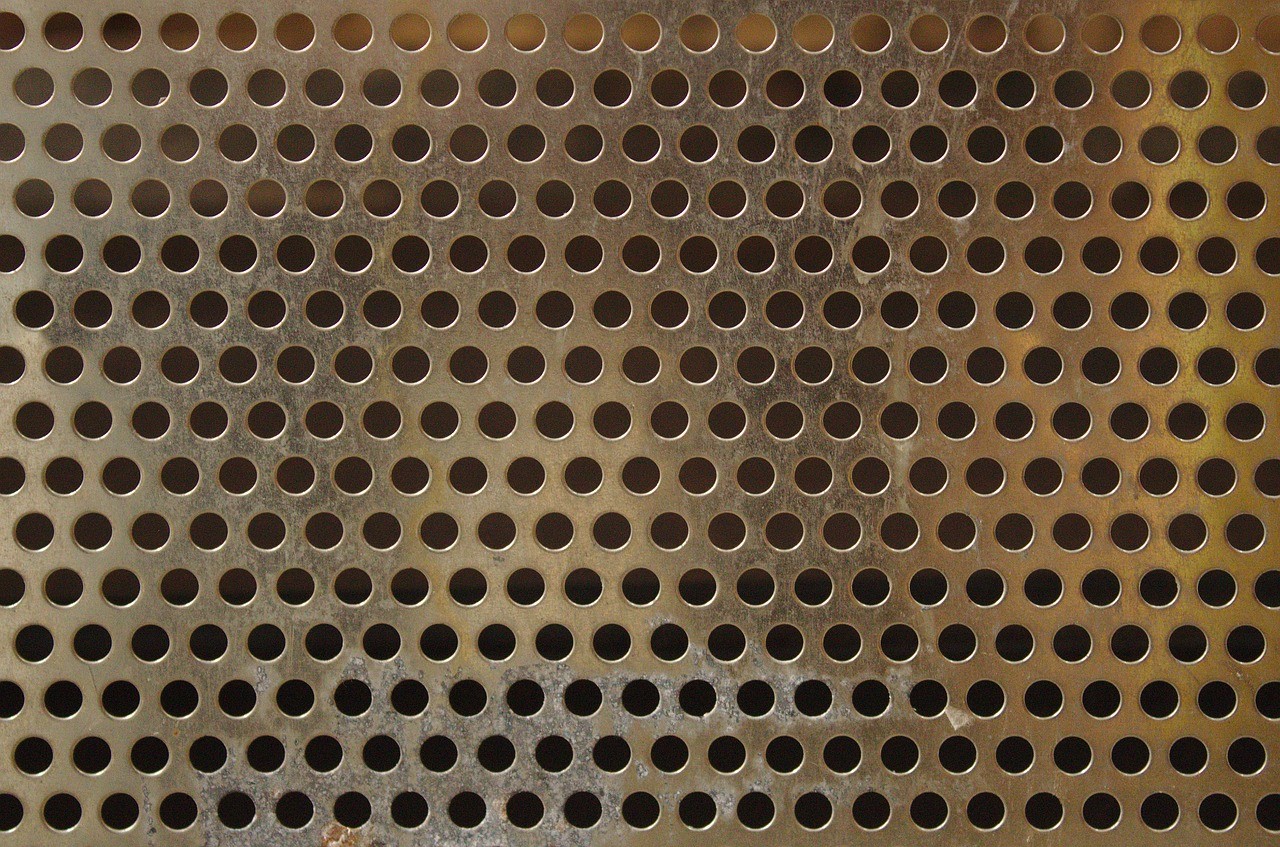

Holes are punched with controlled diameter, centre distance and open area. Round, square, slotted and hexagonal patterns are produced, in straight or staggered arrangement.
Made to your drawing
Send a drawing, a sample or a photograph of the pattern you need. Tooling, margins, hole-to-edge distance and sheet size are agreed before production starts.
Formable after perforating
Perforated Al-Si sheet can be cut, bent, rolled or welded into a finished part, which is why it is widely used for shields, baffles, covers and enclosures.
Material and processing from one source
MESCO STEEL has supplied coated steel since 2007. Buying the coated material and the punching operation from the same supplier removes the handoff, the double freight and the split responsibility.
Material Specification
| Item | Specification |
|---|---|
| Product form | Perforated flat sheet, produced from Al-Si coated steel sheet or coil |
| Coating type | Hot-dip aluminium–silicon (Al-Si, AS type) |
| Coating composition | Aluminium-rich coating with silicon addition, as specified for the AS coating family |
| Coating mass | AS coating weights such as AS80, AS120 or AS150, confirmed per order |
| Base steel | Cold-rolled substrate in grades used for Al-Si coated sheet, such as DX51D, DX53D, SA1C or SA1D — final grade confirmed per order |
| Thickness | Production samples measure approximately 2.6 mm; other thicknesses are available for punching and are quoted per order |
| Surface | Al-Si coated surface, mill finish. Punching is carried out on the coated sheet |
| Service temperature | Confirmed application by application, because the limit depends on coating mass, thickness and duty cycle |
| Certification | Mill test certificate and dimensional inspection report per order |
Any item shown as confirmed per order is quoted from the material actually allocated to your enquiry. We do not publish a nominal figure that later turns out not to apply to your specification — tell us the demand and the parameters are confirmed in writing before production.
Perforation and Punching Capability
Perforation is not a decorative step for this material. On a heat shield or a muffler baffle the hole pattern directly controls airflow, radiated noise and heat transfer, so the pattern has to be reproduced accurately rather than approximated. MESCO STEEL punches the Al-Si coated sheet to the pattern you specify and inspects the result against the same drawing.
| Pattern parameter | What we produce |
|---|---|
| Hole shape | Round, square, rectangular, slotted (elongated), hexagonal and triangular, plus custom profiles per drawing |
| Hole arrangement | Straight (in-line) rows or staggered (60°/45° offset) rows |
| Hole diameter | Produced to customer drawing for each order |
| Pitch and centre distance | Produced to customer drawing; hole-to-hole spacing agreed before tooling |
| Open area | Calculated from hole size and pitch, and matched to the airflow or acoustic target of the part |
| Unperforated margin | Plain border on any side, so the panel can be riveted, bolted, welded or hemmed |
| Sheet size | Cut to the blank size required for the finished part |
| Edge condition | Burr and edge condition agreed per order, because the punched edge exposes the steel core |
| Tooling | Standard tooling where the pattern is standard, dedicated tooling where the pattern is project-specific |
Pattern Selection Guide
| Pattern | Typical use |
|---|---|
| Fine round holes, staggered | Acoustic absorption and muffler baffles, where sound energy has to pass through while the panel stays stiff |
| Medium round holes, straight rows | Heat shields, ventilation covers and general airflow panels |
| Slotted holes | Directional airflow, screens and parts where the opening has to be elongated in one direction |
| Large round holes with a wide margin | Grilles, guards and weight-reduced structural covers |
| Square or hexagonal holes | Higher open area at the same pitch, filtration and decorative industrial panels |
What to Send Us for an Accurate Quotation
Perforated sheet is quoted fast when the enquiry carries the pattern data. Six items are usually enough to price the part and start tooling:
Applications

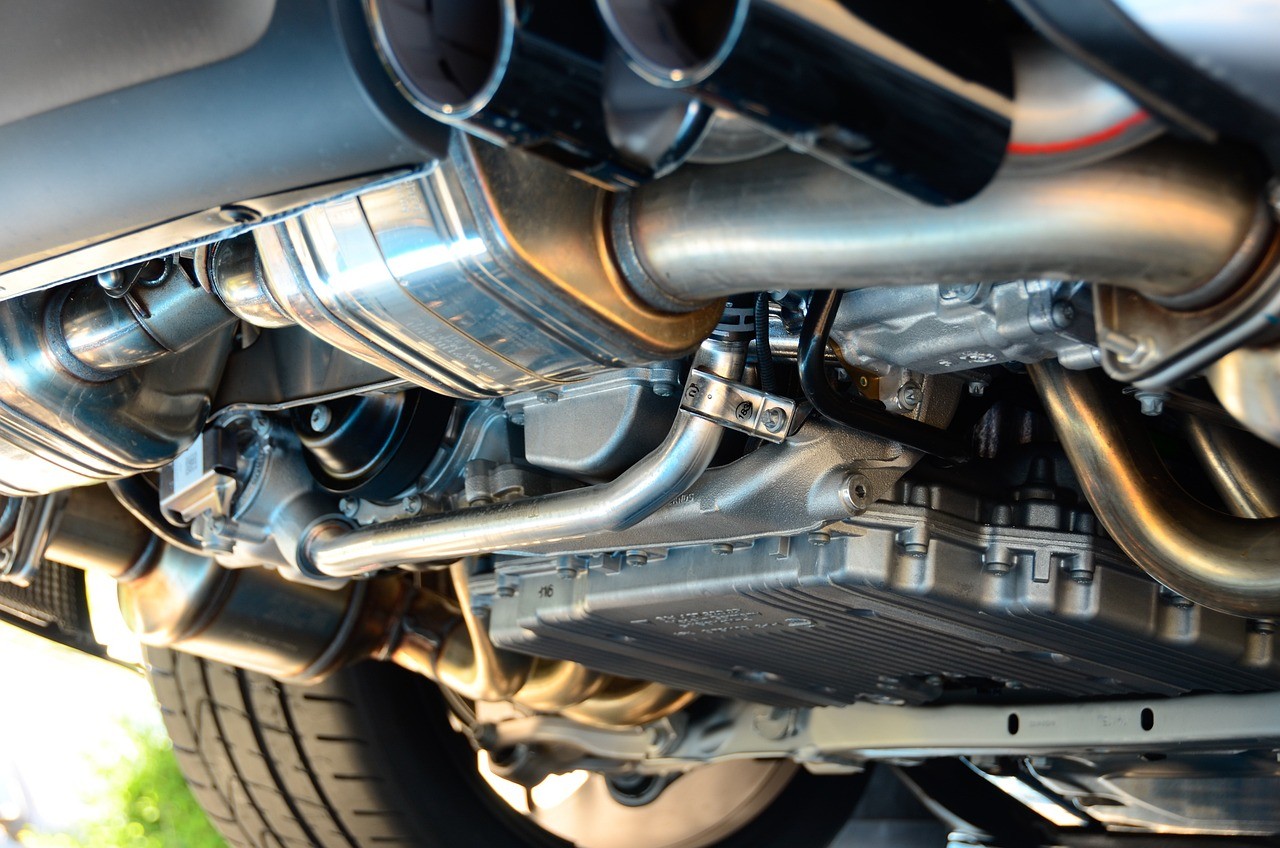

- Automotive exhaust systems — muffler baffles and internals, heat shields, catalytic converter shells and pipe shields, where the material sees both heat and condensate.
- Industrial ovens, furnaces and dryers — internal panels, baffles and air-distribution plates.
- HVAC and ducting — grilles, diffusers and ventilation covers.
- Flues, chimneys and boiler parts — liners and protective panels exposed to flue gas.
- Silencers and acoustic panels — perforated faces for sound attenuation.

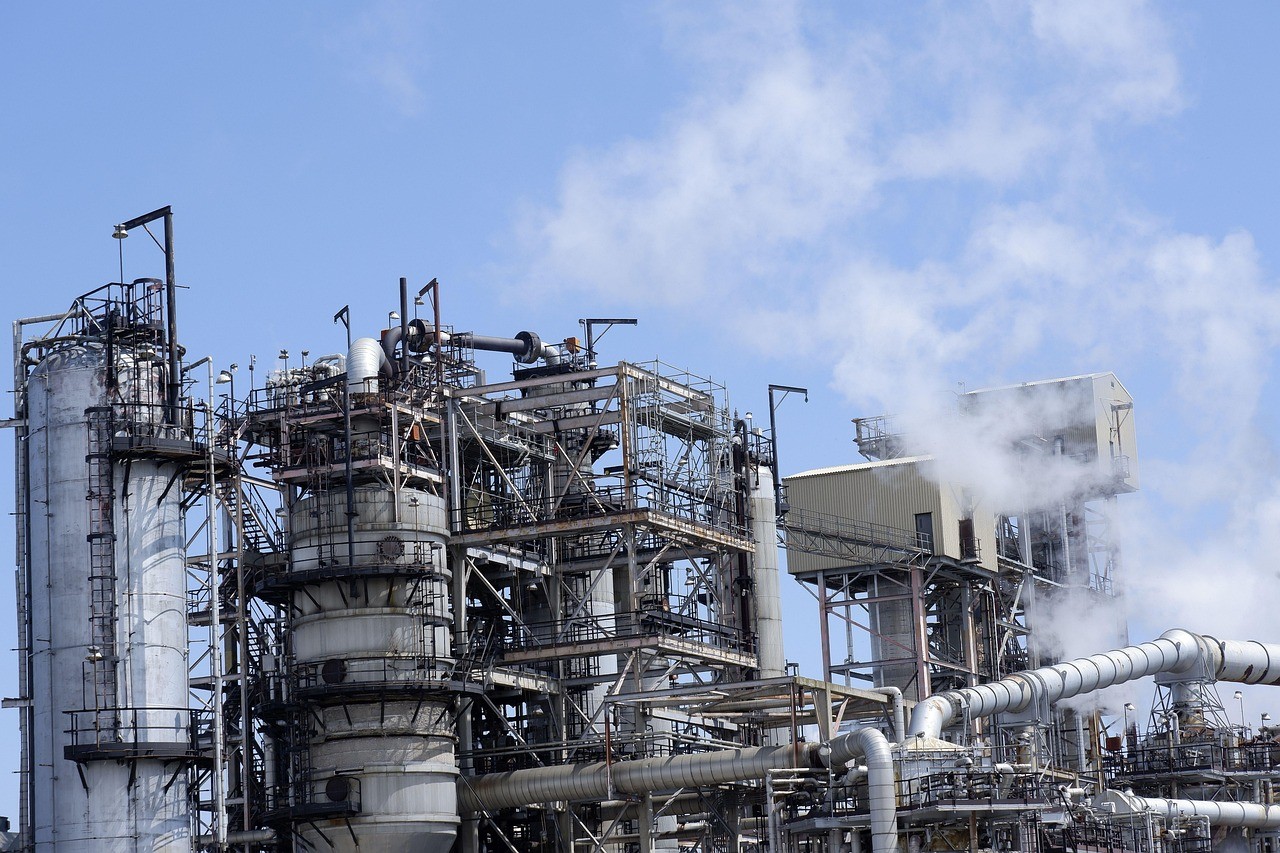

- Filtration and screening — screens and support plates for hot or corrosive process streams.
- Agricultural and construction machinery — guards, covers and heat shields near engines and exhausts.
- Grills, heaters and appliance parts — components that combine a hot surface with a food or domestic environment.
Quality Control
Incoming material
Coating mass, surface condition and mechanical properties of the Al-Si coated sheet are verified against the certificate before the coil is opened for processing.
First-article approval
The first punched blank is measured against the drawing for hole diameter, pitch, open area and margin, and approved before the run continues.
In-process inspection
Hole dimensions, burr height and coating condition are checked during the run so a drift in tooling wear is caught inside the batch, not after it ships.
Final inspection and packing
Finished sheets are inspected for hole quality, coating damage and flatness, then packed for sea freight with protection against edge contact and moisture.
Why Choose MESCO STEEL
Supplying coated steel since 2007
Nearly two decades of export experience in coated and specialised steel, with the specification discipline that European and North American buyers require.
One supplier for material and punching
You deal with a single source for the Al-Si coated material, the perforating operation and the export packing, so responsibility for the finished hole pattern is not split between two factories.
Engineering questions answered before order
Hole pattern, margin, edge condition and service temperature are discussed at quotation stage — the stage where they can still be changed at no cost.
Documentation that matches the goods
Mill certificate, inspection report and packing list issued with the shipment, with third-party inspection arranged when your project requires it.
Frequently Asked Questions
Can you perforate aluminized silicon steel sheet to our own hole pattern?
Yes. Send a drawing, a DXF, a sample or a clear photograph with a scale reference and we will produce the pattern. Standard patterns run on existing tooling; project-specific patterns require dedicated tooling, which is quoted together with the material.
Which thicknesses can be punched?
Production samples of this material measure approximately 2.6 mm, which is representative of the thickness range used for heat shields and load-bearing perforated parts. Thinner and thicker gauges can be punched as well — the achievable combination of thickness, hole diameter and open area depends on the pattern, so it is confirmed for your drawing rather than assumed.
Does punching affect the aluminized silicon coating?
The coating stays intact on both flat faces, while the punched edge exposes the steel core, as it does with any cut or sheared edge on coated sheet. Whether that matters depends on the application, so the edge condition, any re-protection required and the tolerance for coating disturbance around the holes are agreed per order.
Is Al-Si coated steel the right choice for a hot part?
It is normally the right family when a part works hot and also sees moisture or condensate. The Al-Si coating forms a protective aluminium oxide film and an interdiffusion layer instead of scaling, which is why it is common in exhaust and high-temperature equipment. The service limit for a specific coating mass and thickness is confirmed with the quotation.
Do you supply the material only, or the material already punched?
Both. You can buy Al-Si coated sheet or coil as material, or buy the same material already perforated and cut to blank size. Buyers who already run their own press normally take material; buyers who want a finished component take the punched sheet.
How is perforated sheet packed for export?
Sheets are stacked and strapped on pallets or in wooden cases, with interleaving and edge protection to prevent coating scuffing and hole-edge contact damage during sea freight. Packing is specified per order and confirmed in the packing list.
Send Your Hole Pattern and Get a Quotation
Tell us the hole diameter, pitch, pattern, thickness, blank size and quantity — or simply attach the drawing you are working from. We will come back with the Al-Si coated material, the perforating process and the delivery schedule in one offer.
