Color Coated Steel Sheet & Coil (Powder/Heat-Resistant)
Color Coated Steel Sheet & Coil (Powder/Heat-Resistant)
Pre-painted steel with polyester, PVDF, powder, heat-resistant and antibacterial coatings, in custom RAL colors, with paint film up to 300 microns for building and appliance applications.
Overview
MESCO supplies color coated steel sheet and coil for roofing, wall cladding, appliance housings, white goods, interior panels and industrial components. Pre-painted steel arrives ready to fabricate, saving your production line the cost and complexity of painting while delivering a uniform, durable finish.
We coat GI, GL and cold rolled substrates with polyester, SMP, PVDF, powder, heat-resistant and antibacterial systems, in custom RAL or Pantone colors, with paint film thickness up to 300 microns for demanding applications.
What Is Color Coated Steel?

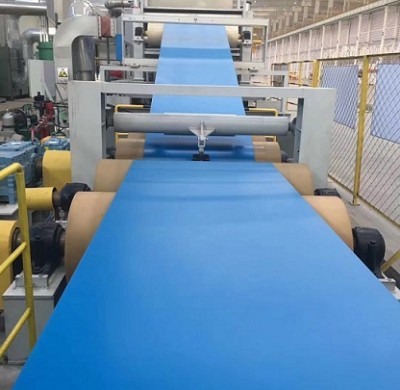

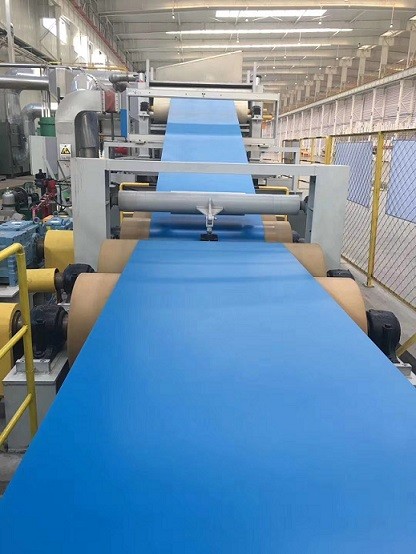

Color coated steel is produced by continuously cleaning, treating and painting a metal coil, then curing the coating in an oven. The finished coil is cut or roll-formed into building and appliance parts. Compared with post-painting, pre-painted steel gives superior coating adhesion, consistent color and faster production turnaround.
Coating Systems
| Coating | Feature | Typical Use |
|---|---|---|
| Polyester (PE) | Good gloss and economy | Roofing, general building |
| SMP | Better hardness and UV resistance | Roofs, facades, gutters |
| PVDF | Superior weather and chalk resistance | Premium facades, coastal areas |
| Powder | Thick, tough, scratch resistant film | Appliances, furniture, equipment |
| Heat-resistant | Withstands high service temperatures | Ovens, heaters, chimneys |
| Antibacterial | Inhibits microbial growth | Medical, food, sanitary environments |
Key Features & Benefits
- Durable coating: thick paint films resist scratches, chalking and UV fading.
- Custom colors: RAL and Pantone matching with consistent batch color.
- Weather resistant: PVDF and SMP systems perform in harsh outdoor exposure.
- Special functions: heat-resistant and antibacterial coatings available.
- Formable: coatings survive bending, roll forming and stamping.
- Production ready: cut and roll-formed parts need no painting.
Specifications & Customization
| Parameter | Range / Option |
|---|---|
| Substrate | GI, GL, cold rolled, aluminum |
| Coating system | PE, SMP, PVDF, powder, heat-resistant, antibacterial |
| Paint film thickness | 20 - 300 um (top coat) |
| Thickness | 0.2 - 2.0 mm |
| Width | 600 - 1500 mm |
| Color | Custom RAL / Pantone / wood stone print |
Share your substrate, coating system, color and dimensions, and we will prepare coated samples for color and performance approval before mass production.
Applications
- Roofing sheets, wall cladding and sandwich panels
- Home appliance housings and white goods parts
- Ovens, heaters and high-temperature components
- Medical and sanitary equipment with antibacterial surfaces
- Furniture, lockers and display panels
- Industrial equipment enclosures
Quality Control
Paint film thickness, gloss, adhesion (cross-cut and T-bend), impact resistance and color difference are tested per batch. Coils are inspected before packing and protected with edge and surface guards for sea freight.
Why Choose MESCO?
- 19 years of steel and coating experience
- Multi-system coating capability in-house
- Custom color matching and samples
- Special functional coatings available
- Reliable supply to appliance and building industries
FAQ
What is the difference between PE and PVDF coatings?
PE (polyester) is economical with good gloss; PVDF offers far superior weather, UV and chalk resistance for premium outdoor facades.
Can you match my brand color?
Yes, we match RAL and Pantone colors and provide coated samples for color approval before production.
Do you offer heat-resistant coated steel?
Yes, heat-resistant coating systems are available for ovens, heaters, chimneys and similar high-temperature parts.
What is your minimum order quantity?
Sample panels are available for approval; production MOQ depends on coating system, thickness and color.
Can color coated steel be roll formed?
Yes, our coatings are formulated to survive bending, roll forming and stamping without cracking or peeling.
