Powder Coated Steel Sheet & Coil
| Share | |
|---|---|
| Categories | Color Coated Steel |
| Brand | MESCO: Trusted Steel Wholesale Manufacturer |
| Model | MESCO-PWD |
| Base Material | SPCC / SGCC / SUS304, 0.3-3.0 mm |
| Powder Types | Epoxy, polyester, epoxy-polyester hybrid, PU |
| Coating Thickness | 60-120 um |
| Colors | Full RAL range, custom matching |
| Gloss Level | Matte 10% to high gloss 90% |
| Curing | 180-200 C, solvent-free |

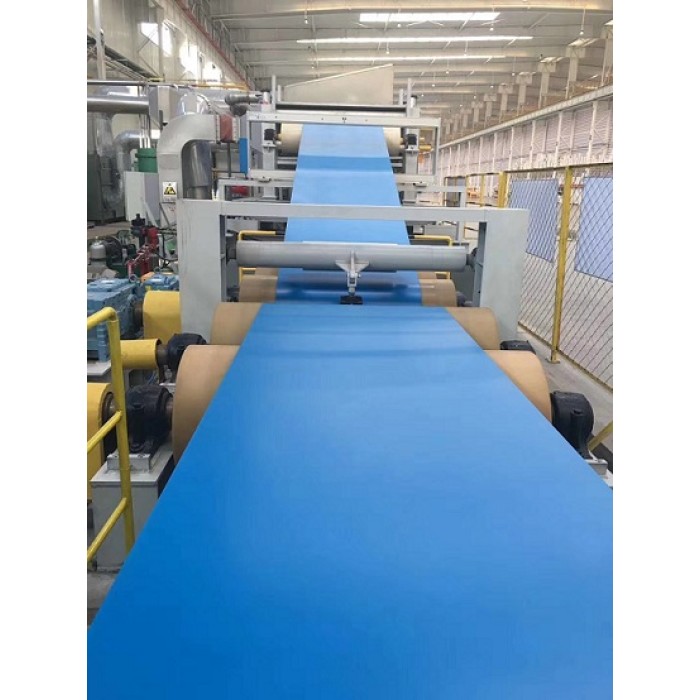

Powder Coated Steel Sheet & Coil
Epoxy and polyester powder coatings applied at 60-120 um in the full RAL color range - a solvent-free, durable finish for appliances, furniture, architecture and general fabrication.
Overview
MESCO supplies powder coated steel sheet and coil for manufacturers who need a heavy-duty, environmentally clean finish. In powder coating, electrostatically charged epoxy or polyester powder is applied to the steel surface and cured into a seamless film - no solvents, no VOC emissions and no paint runs, at film builds two to four times thicker than liquid paint.
Our powder coated products serve appliance housings, office furniture, shelving, electrical enclosures and architectural components across more than 60 countries. Every order runs on traceable batches with color, gloss, adhesion and corrosion testing before release, supported by 19 years of coated steel experience and 9 Fortune 500 customers.
What Is Powder Coated Steel?
Powder coated steel is flat or formed steel finished with a thermoset polymer powder rather than liquid paint. The powder is electrostatically sprayed so it wraps edges and uniformily covers complex shapes, then cured at 180-200 C into a dense, cross-linked film. Compared with liquid paint, powder coatings deliver higher edge protection, better chemical resistance and near-zero overspray waste, and the cured film contains no solvents at all.
Coating Systems
| Powder Type | Properties | Best For |
|---|---|---|
| Epoxy | Hard, chemical resistant, indoor only | Appliance interiors, tanks, electrical parts |
| Polyester | UV stable, excellent weathering | Outdoor furniture, fencing, facades |
| Epoxy-polyester hybrid | Balanced cost and performance | General fabrication, shelving, enclosures |
| Polyurethane | Smooth flow, high abrasion resistance | Premium furniture and panels |
Key Features & Benefits
- Heavy-duty film: 60-120 um builds give 2-4x the protection of standard liquid paint.
- Corrosion resistance: 500-1000 h neutral salt spray over pretreated galvanized or cold rolled base.
- Full RAL range: exact color matching with spectrophotometer verification on every batch.
- Gloss control: matte 10% to high gloss 90%, with textured and hammer finishes available.
- Zero-VOC process: no solvents in application or curing - safer lines and greener products.
- Edge coverage: electrostatic wrap protects cut edges and punched holes without touch-up.
Specifications & Customization
| Parameter | Range / Option |
|---|---|
| Base material | SPCC cold rolled, SGCC galvanized, SUS304 stainless |
| Base thickness | 0.3 - 3.0 mm |
| Coating thickness | 60 - 120 um (single or double coat) |
| Color | Full RAL classic range, Pantone and custom matching |
| Gloss level | Matte / satin / gloss / high gloss / textured |
| Cure schedule | 180-200 C object temperature |
| Form supply | Coil, cut sheet, slit strip, or formed profile |
Tell us your application environment, target color code and forming requirements. We recommend the powder chemistry, confirm adhesion on your substrate and supply samples within 7 days; pilot lots then run before mass production release.
Applications
- Appliance housings: washing machines, dryers, ovens and air conditioners
- Office and home furniture, shelving and storage systems
- Electrical enclosures, cabinets and switchgear panels
- Architectural trim, ceilings, fencing and facade elements
- Racks, trolleys and general metal fabrication
Quality Control
Finishing starts with surface preparation: degreasing and conversion coating create the bond layer that powder performance depends on. During coating we control film weight, cure temperature and line speed, then test every batch for color difference, gloss, adhesion (cross-hatch), cupping, impact and pencil hardness. Salt spray testing is performed per schedule or on request, and full QC documentation accompanies each shipment.
Why Choose MESCO?
- 19 years of experience in coated flat steel products
- Factory-direct production with in-house pretreatment lines
- 9 Fortune 500 customers and supply to 60+ countries
- Exact RAL color matching with batch spectrophotometer records
- Flexible trial orders and fast sample turnaround
FAQ
Powder coating versus liquid paint - which should I choose?
Powder coating wins on film build, edge protection, chemical resistance and environmental compliance. Liquid paint is mainly chosen for very thin films or field repainting, which powder does not cover.
Can the coated sheet be bent or formed after coating?
Yes. Flexible powder systems hold adhesion on moderate bends; for deep forming we recommend formable powder grades and can validate them on your tooling.
Can you match a custom color?
Yes. We match RAL, Pantone or physical samples and keep the formula on file so reorders stay consistent.
Is powder coating food safe?
Cured polyester powders are widely used on appliance exteriors. For food-contact surfaces please tell us the application so we can recommend compliant systems.
What is the typical lead time?
Standard RAL colors ship in 2-4 weeks; custom-matched colors add 7-10 days for approval samples.
