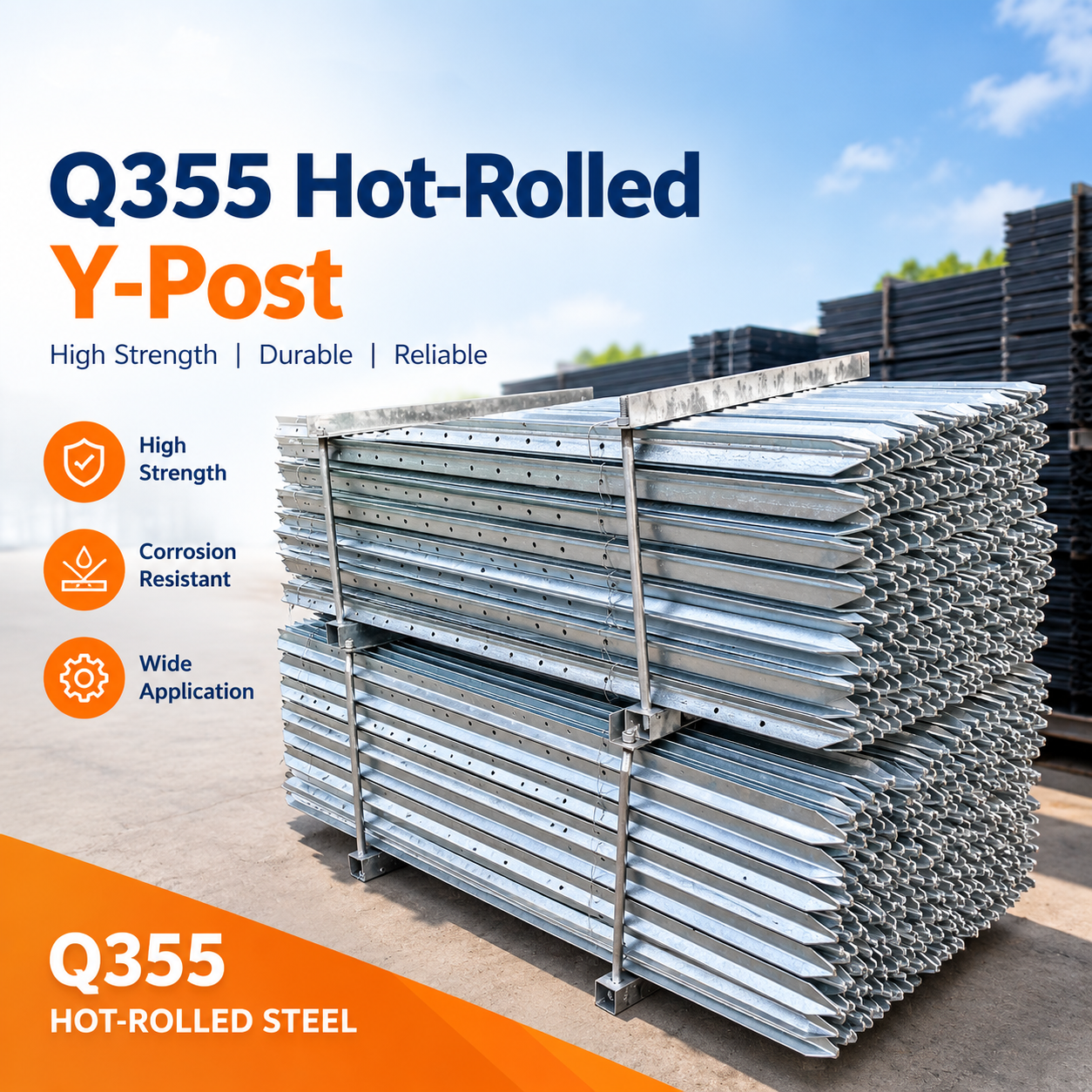

Hot-Rolled Q355 Steel Y-Post (Star Picket) Fence Post
High-strength, hot-rolled Q355 steel Y-posts (also known as star pickets, waratahs or fence stakes) manufactured by MESCO Steel for permanent and temporary fencing in agriculture, viticulture, ranching, civil construction and site security applications. Each post is roll-formed from hot-rolled structural steel strip, pre-punched with fixing holes and supplied as standard with a hot-dip galvanized (zinc) coating for long-term corrosion resistance in outdoor soil contact.
High Strength
Produced from Q355 hot-rolled structural steel, the Y-post drives cleanly into firm soil and resists bending under livestock impact, snow load and fencing tension.
Corrosion Resistant
Standard hot-dip galvanizing to ASTM A123 / ISO 1461 provides a uniform zinc barrier across the Y-profile, including the punched holes and the pointed tip.
Wide Application
Used for sheep and cattle fences, vineyard trellis support, orchard deer fencing, highway boundary fencing, construction site hoarding and event crowd control.
Overview
The Y-post gets its name from the Y-shaped cross-section formed by a central web and two flanged wings that taper to a point at the bottom. The flanges give the post its characteristic rigidity when driven into the ground and also create the ribs along which the punched locating holes sit, allowing plain wire, barbed wire, hinge joint mesh and electric fence tape to be fixed without separate fasteners. Because Q355 is a hot-rolled structural grade with controlled mechanical properties, the section can be roll-formed cleanly, the spear point holds its shape during driving, and the post remains straight under repeated load cycles.
What Is a Y-Post (Star Picket)?
A Y-post is a roll-formed steel fence post with a Y-shape in cross-section, a pressed spear point at the base for manual or post-driver installation, and a series of pre-punched holes along the web for wire and mesh fixing. Y-posts are commonly known as star pickets in Australia, waratahs in New Zealand, and fence stakes in the United States. They are designed to be driven directly into the ground using a manual post driver or a pneumatic post driver, eliminating the need for digging, concrete or anchor blocks in most soil types.
The flanged Y-section gives the post three stiffening ribs, which is why the same weight of steel per metre produces a stiffer post than a round or square section. This is particularly valuable in livestock fencing, where the post has to absorb impact from animals pressing against the line wire and yet flex enough to recover without permanent deformation.
Key Features
- Steel grade. Q355 hot-rolled structural steel, controlled chemical composition and guaranteed mechanical properties.
- Section profile. Y-profile with two flanged wings and a central web; ribs run the full length of the post.
- Spear point. Pressed point allows the post to penetrate compacted soil, gravel and clay without pre-augering.
- Pre-punched holes. Locating holes along the central web for plain wire, barbed wire, hinge joint and electric fence conductors.
- Surface finish. Hot-dip galvanized as standard for outdoor service life; alternative finishes such as zinc-aluminum (ZAM) or black/bitumen can be supplied on request.
- Customization. Length, hole spacing, hole diameter, section dimensions and steel grade are produced to order against the project specification.
Performance Parameters
| Parameter | Typical Specification | Notes |
|---|
| Steel grade | Q355 (GB/T 1591) | Hot-rolled structural steel |
| Production process | Hot-rolled strip, then roll-formed | Y-section formed in roll-forming line |
| Yield strength | ≥ 355 MPa | Per Q355 grade designation |
| Tensile strength | 470 to 630 MPa | Per Q355 grade designation |
| Elongation | ≥ 21 % | Per Q355 grade designation |
| Typical lengths | 0.6 m to 2.4 m | Common lengths 0.9 / 1.2 / 1.5 / 1.8 / 2.1 m; other lengths on request |
| Section profile | Y post with two flanges | Common cross-section nominal dimensions on request |
| Hole pattern | Pre-punched along post length | Hole spacing, number of holes and centre-line position to project dimension are produced to order |
| Tip | Pressed spear point | Standard; hardened tip on request |
| Surface treatment | Hot-dip galvanized | Standard; ZAM, black, bitumen, painted on request |
| Coating mass | Standard galvanizing to ASTM A123 / ISO 1461 | Heavier coating classes produced to order against the project specification |
| Packaging | Bundled, strapped, end-capped | 10 / 20 / 50 post bundles common; bundle size to order |
Mechanical values stated are the Q355 grade envelope (GB/T 1591). Specific cross-section dimensions, mass per metre and exact hole pattern are produced to order and are confirmed against the customer's drawing or specification at quotation.
Substrate and Specification Options
Standard Q355 hot-rolled strip is the typical substrate. Where the project calls for additional corrosion performance in coastal, livestock manure or acidic soil environments, the same Y-section can be supplied in ZAM (zinc-aluminum-magnesium) coated strip or with a heavier hot-dip galvanizing class. The web and flange thickness are held to a uniform nominal value along the post length so that the driving behaviour remains consistent from the first post to the last.
For high-cycle installations such as highway boundary fencing or vineyard trellis lines, we recommend the heavier coating classes and a tighter hole pattern. For temporary fencing such as construction site hoardings, the standard coating and pattern are typically sufficient. Painted topcoats over galvanized (duplex system) can be supplied when colour coding of fence lines is needed.
Applications
Farms and Ranches
Boundary fence lines for cattle, sheep and horse paddocks. Standard 1.5 m to 1.8 m posts driven at 4 to 6 m spacing.
Vineyards and Orchards
End-post and intermediate support in grape and orchard trellis systems, where the Y-profile stiffens the row against vine load.
Highway and Boundary
Perimeter fencing of roads, rail corridors and right-of-way boundaries where permanent, in-ground posts are required.
Construction Sites
Temporary hoarding, mesh fencing and event barriers; posts are removable and reusable on site hand-over.
Wildlife and Deer Fencing
Intermediate and line posts in taller deer and wildlife exclusion fences where the post must flex under impact.
Electric Fence Systems
Insulator carriers for single and multi-wire electric fence systems; pre-punched holes accept standard insulators.
Quality Control
Every production batch is checked for steel grade traceability, section profile geometry, hole spacing, spear point geometry and coating mass. Hot-dip galvanizing is verified against ASTM A123 / ISO 1461 by coating thickness measurement and visual inspection. Posts are bundled and strapped with end protection to preserve the spear point and prevent transit damage; bundle counts, end caps and label format follow the project packing list.
Why Choose MESCO Steel
MESCO is a 19-year export-oriented steel mill partner with deep know-how in hot-rolled structural strip, ZAM coating systems and roll-formed profiles. The same Y-post line can be cross-referenced against our galvanized steel coil and ZAM coated steel coil production, so the substrate supply chain is short and traceable. We supply farm, vineyard, civil and security projects across more than 40 export destinations and pack to the project's standard.
Frequently Asked Questions
1. What is the standard length of a Y-post?
The most common lengths are 0.9, 1.2, 1.5, 1.8 and 2.1 m, with 1.5 m and 1.8 m being the most common livestock fence sizes. We can roll-form lengths from 0.6 m to 2.4 m as standard, and other lengths can be supplied against the project specification.
2. How is a Y-post installed?
Y-posts are driven directly into the ground using a manual post driver (a weighted sleeve that drops over the post top) or a pneumatic post driver. No digging, concrete or anchor block is required in most soil types. The spear point cuts a clean entry path and the flanges keep the post straight during driving.
3. What is the difference between a Y-post and a star picket?
They are the same product. "Star picket" is the common name in Australia, "waratah" in New Zealand, "fence stake" in the United States, and "Y-post" in most other countries. All refer to a roll-formed Y-section steel post with a spear point and pre-punched wire-fixing holes.
4. Can the coating be customized?
Yes. Standard supply is hot-dip galvanized to ASTM A123 / ISO 1461. Heavier coating classes, zinc-aluminum-magnesium (ZAM) and duplex painted systems are available against the project specification.
5. What is the minimum order quantity?
Minimum order quantity, lead time and packing configuration are confirmed against the project specification at quotation. MESCO Steel supplies both full container-load production runs and mixed specification batches across our export destinations.
Request a Quote
Send us your project length, hole pattern, coating class and quantity. We will confirm price, lead time and packing against the project specification.
