Aluminum Jacketing and Cladding with PolySurlyn Moisture Barrier (PSMB)
| Share | |
|---|---|
| Categories | Aluminum Coil |
| Brand | MESCO: Trusted Steel Wholesale Manufacturer |
| Product Category | Aluminum Jacketing and Cladding (PSMB) |
| Application | Pipe Insulation |
| Alloy and Temper | 3003 / H14 / H24 / H16 |
| Aluminum Coil Thickness | 0.5 - 1.0 mm |
| Coil Width | 914 / 1000 / 1200 mm |
| Lamination Process | Hot-press lamination of PolySurlyn (Sarin) film onto aluminum coil |
| Film Thickness | 0.08 mm |
| Surface Finish | Smooth, or orange peel embossed |
| Colour | Blue / Orange / Pink |
| Film Coverage | Full board coverage, film edges within aluminum width, slit where necessary |
| Bonding Method | Roller hot pressing or laminated hot pressing |

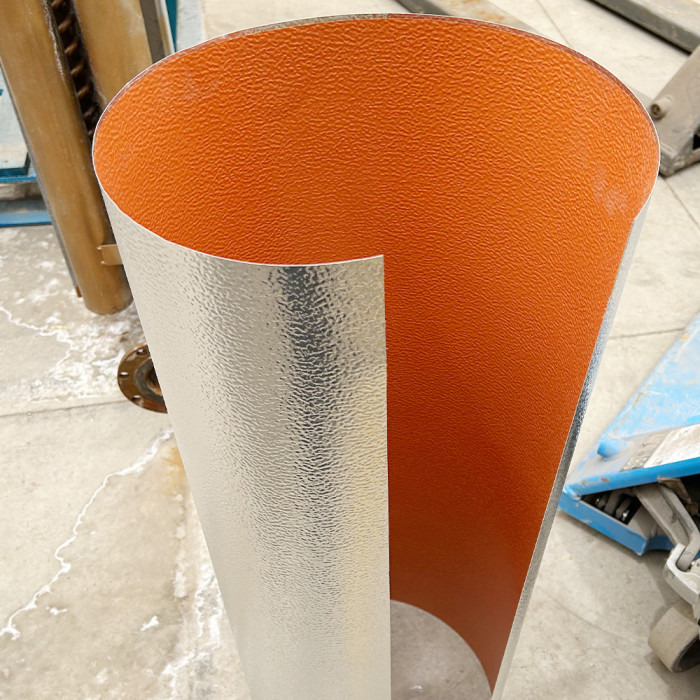

PSMB Aluminum Jacketing and Cladding for Pipe Insulation
PSMB aluminum jacketing is an aluminium coil hot-press laminated with a PolySurlyn moisture barrier film. The film bonds to aluminium, iron, steel, wood and fabric under heat and pressure, holds its adhesion across extreme service temperatures, and gives the finished jacket the air tightness and corrosion protection required on insulated pipelines and vessels.
- Superior adhesion — hot-press bonding to aluminium, iron, steel, wood and fabric
- Retains adhesion at extreme temperatures, with good weathering resistance
- Air tight, corrosion resistant — the ideal pipeline protection layer
Overview
MESCO supplies PSMB aluminum jacketing and cladding — aluminium coil laminated with a PolySurlyn (Sarin) film — for pipe insulation and pipeline corrosion protection. The aluminium substrate is 3003 alloy in H14, H24 or H16 temper, between 0.5 mm and 1.0 mm thick, in coil widths of 914 mm, 1000 mm and 1200 mm. The PolySurlyn film is applied at 0.08 mm by hot pressing.
The product is supplied in blue, orange and pink, and the surface can be embossed with an orange peel texture. Film coverage is controlled so that the film covers the full width of the board, with the film edges kept within the aluminium width; where the application requires it, the coil is slit to the exact width so the film does not overhang the metal edge.
What Is PSMB Aluminum Jacketing?
PSMB stands for PolySurlyn moisture barrier. It is a laminated construction in which a polymer PolySurlyn film is bonded to an aluminium coil under heat and pressure, producing a jacket with a continuous, air tight polymer face over a formable metal substrate. The polymer film carries the moisture barrier and the adhesion; the aluminium carries the mechanical strength and the shape.
The film is a high-polymer adhesive film, so it bonds not only to aluminium but, under hot pressing, also to iron, steel and other metals, as well as to wood and fabric. In production the film gives off no volatile matter and no odour, and it runs at high efficiency, which keeps the lamination process clean and the output consistent.
| Layer | Function | Specified as |
|---|---|---|
| PolySurlyn film | Moisture barrier, adhesion, air tightness | 0.08 mm, hot-press laminated |
| Aluminium coil | Substrate, mechanical strength, formability | 3003 alloy, H14 / H24 / H16, 0.5–1.0 mm |
| Surface finish | Appearance and handling | Smooth or orange peel embossed |
| Colour | Identification and appearance | Blue / orange / pink |
| Edge condition | Clean film termination at the panel edge | Film within aluminium width, slit where necessary |
Key Features
Superior Adhesion
Through hot pressing the PolySurlyn film bonds to aluminium, iron, steel and other metals, and also to wood and fabric, so the same film system can be used across different substrate combinations.
Adhesion at Extreme Temperatures
The film keeps its adhesion under extreme temperature conditions and offers good weathering resistance, which is what an outdoor or high-temperature pipeline jacket needs.
Easy to Process
The laminated coil is straightforward to form, cut and install, and the film runs efficiently through the lamination line.
No Volatiles, No Odour
The PolySurlyn high-polymer adhesive film gives off no volatile matter and no odour during production, keeping the process clean and the working environment acceptable.
Air Tightness and Corrosion Protection
The multi-layer structure combines excellent metal adhesion with good air tightness, making it an ideal protective layer for pipeline internal corrosion protection.
Roller or Laminated Hot Pressing
The film can be composited with other substrates either by roller hot pressing or by laminated hot pressing, so the process can be matched to the substrate and the production line.
Product Specification
| Item | Available options |
|---|---|
| Product category | Aluminum jacketing and cladding (PSMB) |
| Application | Pipe insulation |
| Alloy and temper | 3003 / H14 / H24 / H16 |
| Aluminum coil thickness | 0.5–1.0 mm |
| Coil width | 914 / 1000 / 1200 mm |
| Lamination process | Hot-press lamination of PolySurlyn (Sarin) film onto aluminium coil |
| Film thickness | 0.08 mm |
| Surface finish | Smooth, or orange peel embossed |
| Colour | Blue / orange / pink |
| Film coverage | Film covers the full board; edges kept within the aluminium width and slit where necessary |
Items such as base metal for other substrate combinations, coil weight, inner diameter, delivery lead time and minimum order quantity are produced to order. Please confirm them with your enquiry.
Surface Finish and Colour
The laminated surface is supplied in three standard colours — blue, orange and pink — and can be left smooth or embossed with an orange peel pattern. Embossing changes how the jacket reads on a finished pipe run and how the surface behaves in handling, so it is normally selected together with the colour and the aluminium gauge.
Because the film is supplied in a fixed set of colours, colour matching for a specific project should be discussed at the enquiry stage rather than assumed from a screen or a sample copy.

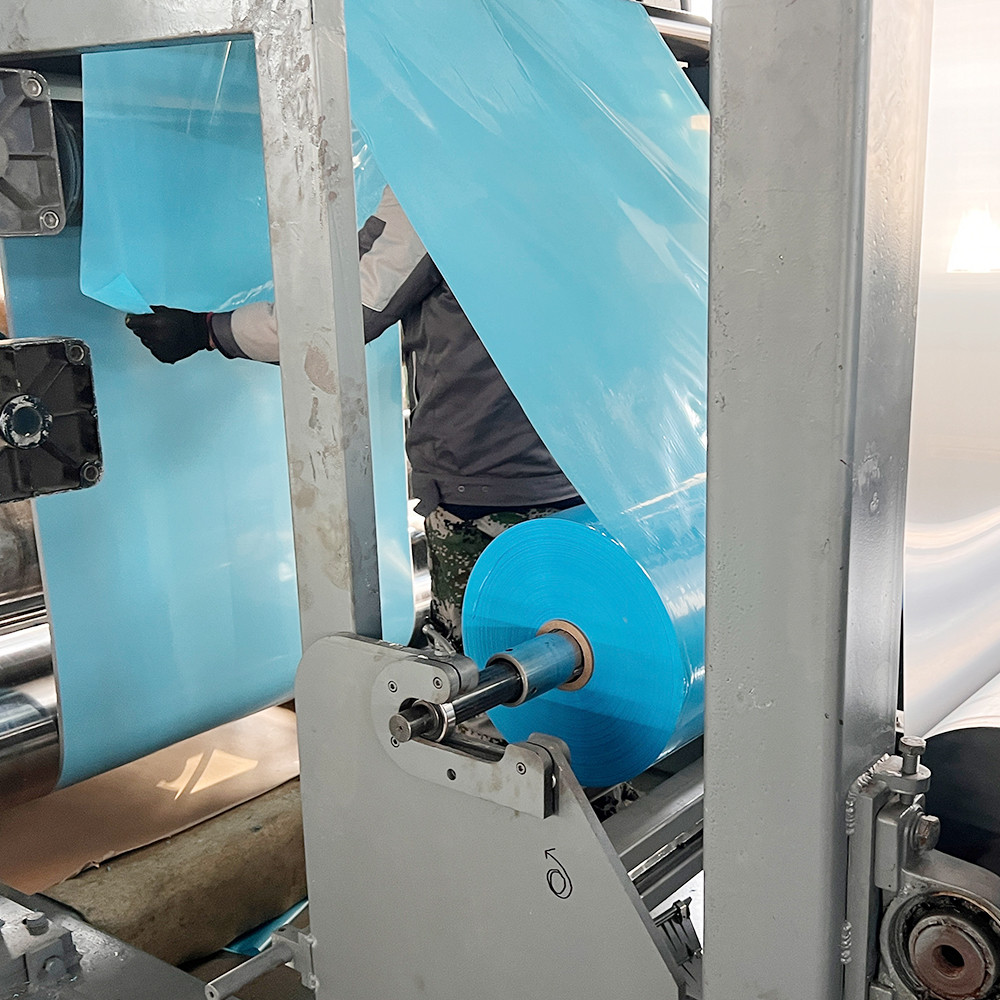

Lamination Process and Edge Control
The aluminium coil is hot-press laminated with the PolySurlyn film to a film thickness of 0.08 mm. Depending on the substrate and the product, the film can be applied by roller hot pressing or by laminated hot pressing, and the surface can be embossed with an orange peel texture after lamination.
Edge control matters on jacketing, because a film that overhangs the metal edge collects dirt, lifts in service and gives moisture a path into the insulation. The film is therefore applied to cover the full board face, with the two film edges kept inside the aluminium width. Where the finished width requires it, the coil is slit to bring the film and the metal edge into line.
Applications
The film can be composited with a wide range of materials, so PSMB aluminum jacketing is used both as a finished pipeline protection product and as a laminating material in other industries.
- Pipe insulation jacketing — the outer protective jacket over thermal insulation on pipelines.
- Pipeline internal corrosion protection — the multi-layer laminated structure is used as a protective layer inside pipe systems.
- Metal composite — hot-press bonding to aluminium, iron and steel.
- Home appliance and electronics — laminating applications in appliance and electronic manufacturing.
- Building decoration — decorative laminating of metal surfaces.
- Thermal insulation systems — insulation and moisture barrier assemblies.
- Luggage, footwear, automotive interior and furniture — bonding of the film to fabric, wood and other substrates.
Quality Control
- Imported raw materials are used, which supports consistent and stable product performance.
- Aluminium coil is checked for alloy, temper, gauge and width before lamination.
- Film thickness is controlled to the specified 0.08 mm through the lamination run.
- Adhesion between the film and the aluminium is inspected on the laminated coil.
- Film coverage is checked so the face is fully covered and the edges stay within the aluminium width.
- Finished coils are wrapped and identified so the specification travels with the coil to the job site.
Where your project calls for third-party inspection or specific test documentation, we can arrange the inspection scope together with the order.
Why Choose MESCO for PSMB Aluminum Jacketing
Imported Raw Materials
MESCO uses imported raw materials for the film system, which is how the product holds a superior and stable performance level rather than varying batch to batch.
Hot-Press Lamination Control
Roller and laminated hot pressing are both available, and the film thickness and adhesion are controlled through the run.
Film Edge Discipline
The film covers the full board with the edges kept inside the aluminium width, and the coil is slit where the finished width requires it.
Multi-Substrate Capability
Beyond aluminium, the film can be composited with iron, steel, wood and fabric, so one supplier can cover several laminating projects.
Frequently Asked Questions
What is PSMB aluminum jacketing?
It is an aluminium coil hot-press laminated with a PolySurlyn moisture barrier film. The aluminium provides the strength and formability, and the film provides the moisture barrier, the air tightness and the adhesion. It is used mainly as a jacketing and protection layer on insulated pipelines.
What aluminum thickness and film thickness are supplied?
Aluminium coil is supplied from 0.5 mm to 1.0 mm in 3003 alloy, H14, H24 or H16 temper. The PolySurlyn film is applied at 0.08 mm. Coil widths are 914 mm, 1000 mm and 1200 mm.
Which colours and surface finishes are available?
Blue, orange and pink are the standard film colours. The surface can be supplied smooth, or embossed with an orange peel texture.
Can the film be laminated to substrates other than aluminum?
Yes. Through hot pressing the PolySurlyn film bonds to iron, steel and other metals, as well as to wood and fabric, and it can be composited by roller or laminated hot pressing.
How is the film edge controlled on the finished coil?
The film covers the entire board face, and the two film edges are kept within the aluminium width rather than overhanging it. Where the finished width requires it, the coil is slit so that the film and the metal edge line up.
Request a Quotation for PSMB Aluminum Jacketing
Send us the alloy and temper, aluminium thickness, coil width, film thickness, colour, whether the surface should be smooth or orange peel embossed, and the destination port. We will confirm the specification, the packaging and the delivery schedule.
